Row types

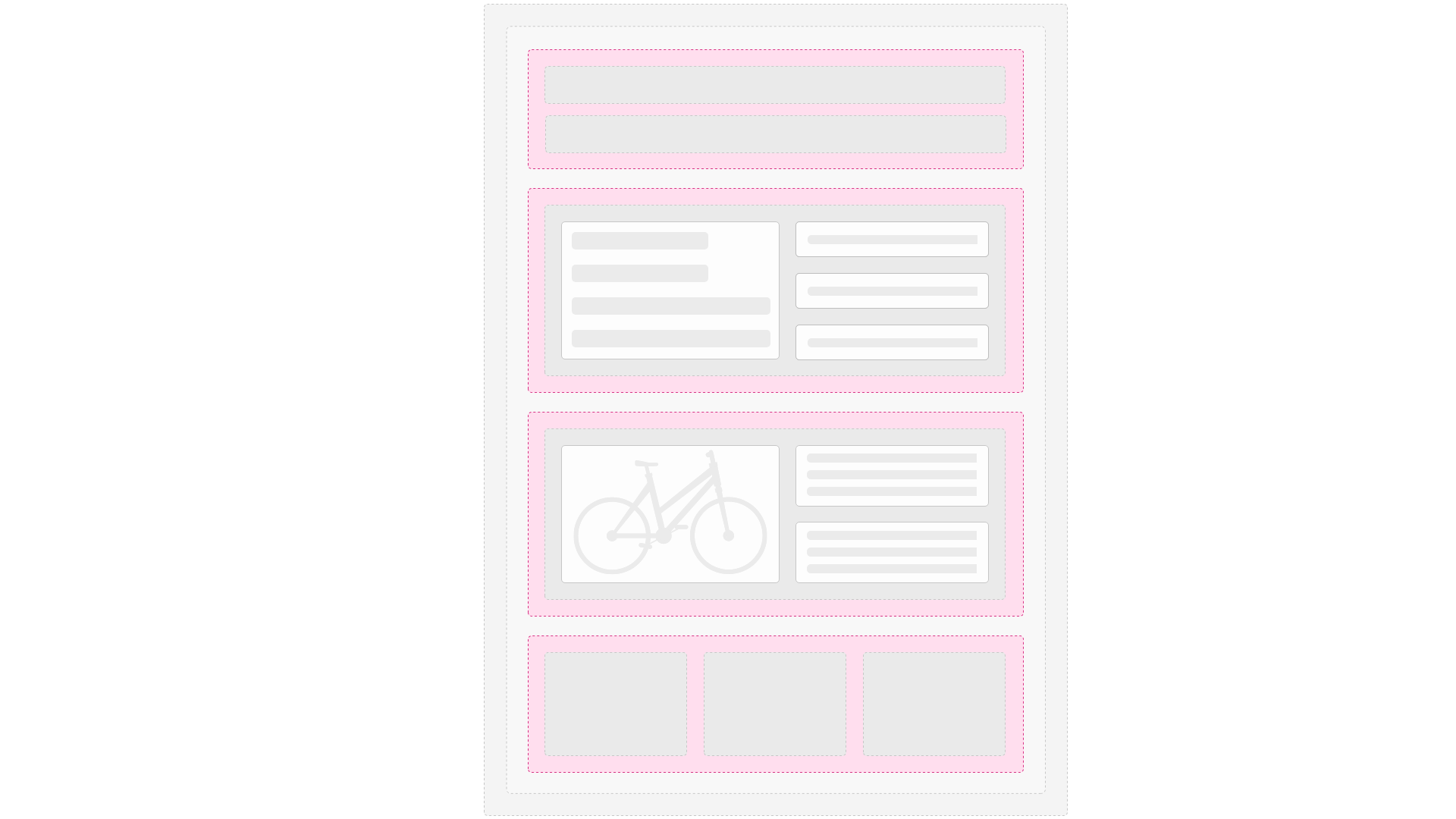

Rows are content elements which are used to create a content grid on pages where the page type supports it.
Each row can have up to 6 columns - acting as slots for paragraph types - and a number of settings which control e.g. the width of each column, if column widths are fixed or flexible, and so on.
Location of files
A row definition is associated with:
- An definition-file which contains the row id, name, column count, etc.
- A row template which translates the values in the definition into markup
Row definitions and row templates are stored in subfolders to the Swift-v2 design-folder. Each Grid has a separate subfolder - Swift 2 has one for Page and one for Email - under which you will find the definitions and templates:
/Files/
├── Images/
├── System/
├── Templates/
│ ├── Designs/
│ │ ├── Swift-v2/
│ │ │ ├── Grid/
│ │ │ │ ├── Page/
│ │ │ │ │ ├── RowDefinitions/ <---- This folder
│ │ │ │ │ ├── RowTemplates/ <---- And this folder
Row types
DynamicWeb Swift features two different grids out of the box:
- Page - which is used on pages of the Page type
- Email - which is used on pages of the Email type
Both of these grids have their own row types - with dedicated definitions and templates - which are listed below.
Page rows
The following row types exist out of the box for the Page-grid:
| Name | Column Count | Column Width Type | Template |
|---|---|---|---|
| 1 column | 1 | Fixed | Swift-v2_Row.cshtml |
| 1 column flexible | 1 | Fixed | Swift-v2_RowFlex.cshtml |
| 2 columns | 2 | Fixed | Swift-v2_Row.cshtml |
| 2 columns flexible | 2 | Flexible | Swift-v2_RowFlex.cshtml |
| 2 columns (3/9) | 2 | Fixed | Swift-v2_Row.cshtml |
| 2 columns (4/8) | 2 | Fixed | Swift-v2_Row.cshtml |
| 2 columns (8/4) | 2 | Fixed | Swift-v2_Row.cshtml |
| 2 columns (9/3) | 2 | Fixed | Swift-v2_Row.cshtml |
| 3 columns | 3 | Fixed | Swift-v2_Row.cshtml |
| 3 columns flexible | 3 | Flexible | Swift-v2_RowFlex.cshtml |
| 4 columns | 4 | Fixed | Swift-v2_Row.cshtml |
| 4 columns flexible | 4 | Flexible | Swift-v2_RowFlex.cshtml |
| 6 columns | 6 | Fixed | Swift-v2_Row.cshtml |
| 6 columns flexible | 6 | Flexible | Swift-v2_RowFlex.cshtml |
Email-rows
The following row types exist out of the box for the Email-grid:
| Name | Column Count | Column Width Type | Template |
|---|---|---|---|
| Email 1 column | 1 | Fixed | Swift-v2_EmailRow.cshtml |
| Email 2 columns | 2 | Fixed | Swift-v2_EmailRow.cshtml |
| Email 3 columns | 3 | Fixed | Swift-v2_EmailRow.cshtml |
| 1 Column | 1 | Fixed | 1Column.cshtml |
| 2 Columns | 2 | Fixed | 2Columns.cshtml |
| 3 Columns | 3 | Fixed | 3Columns.cshtml |
